Condair RS Resistive Steam Humidifier

Q: How accurate is humidity control with the Condair RS?

The Condair RS ensures very precise control of relative humidity. With standard mains water, accuracy is ±3% RH. When operated with reverse osmosis (RO) water treatment, it achieves an impressive ±1% RH.

Request a quote

Condair RS

Resistive steam humidifier

Innovative scale management removes the separated minerals from the steam cylinder during operation and automatically conveys them into the designated scale collecting tank. Scale deposits are thus continuously removed from the steam cylinder.

Condair RS steam humidifier

Top of page Features Product details Downloads FAQs References Quotes

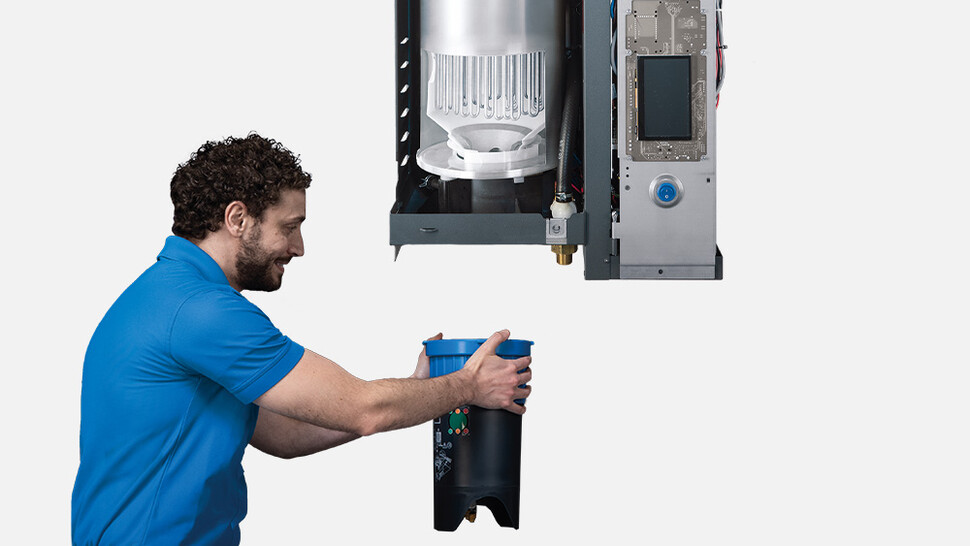

A technical innovation that solves the scale problem

Advanced steam cylinder design lets in-house staff remove scale easily. Deposits fall into a collection tank that can be drained without opening the unit. Regular removal improves performance, lowers service needs, and prevents drain blockages.

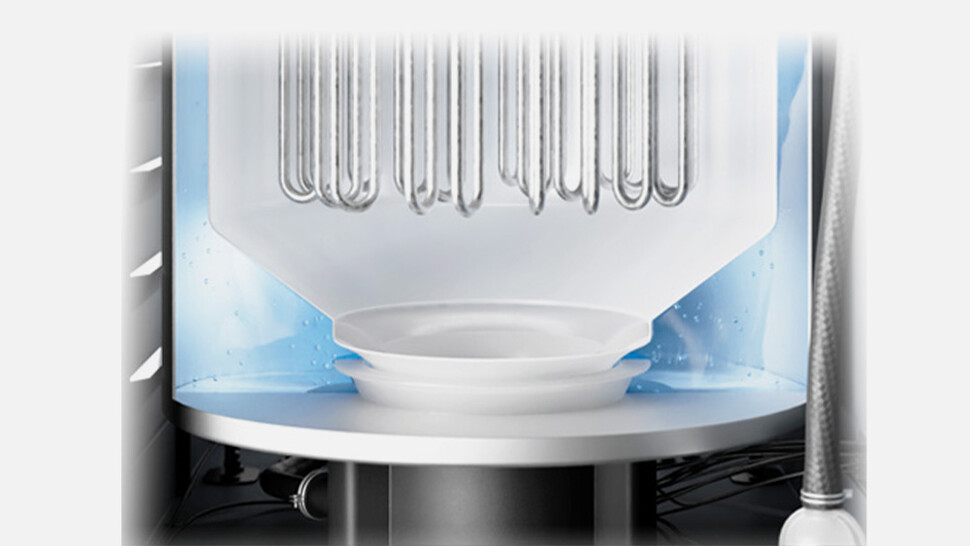

Cold water pool protects inlet and outlet from scale

Near the in- and outlet connections, the twin walled cylinder design of the unit creates a cold water pool which always remains below the temperature of scale formation. Water in- and outlet are therefore protected against scale deposition.

Robust outdoor housing for external installation

The weatherproof powder coated galvanized steel housing allows the Condair OC to be installed outdoors. This saves valuable indoor space and ensures reliable steam humidification even in challenging environments.

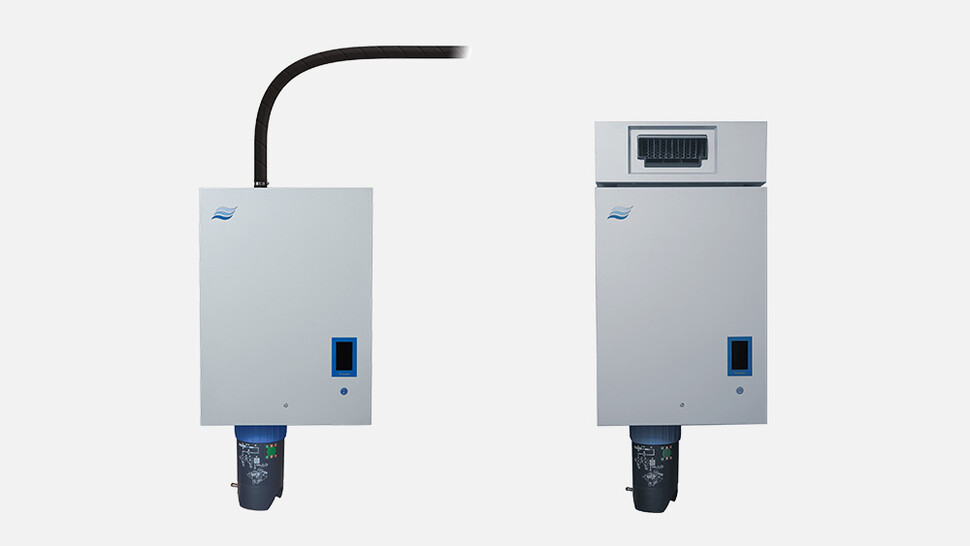

Steam distribution options

With steam hose for in-duct or blower pack for direct room humidification. The Condair steam pipe ensures optimal steam distribution with precise humidity delivery. Designed for efficient performance, it provides reliable indoor air quality and consistent humidification results.

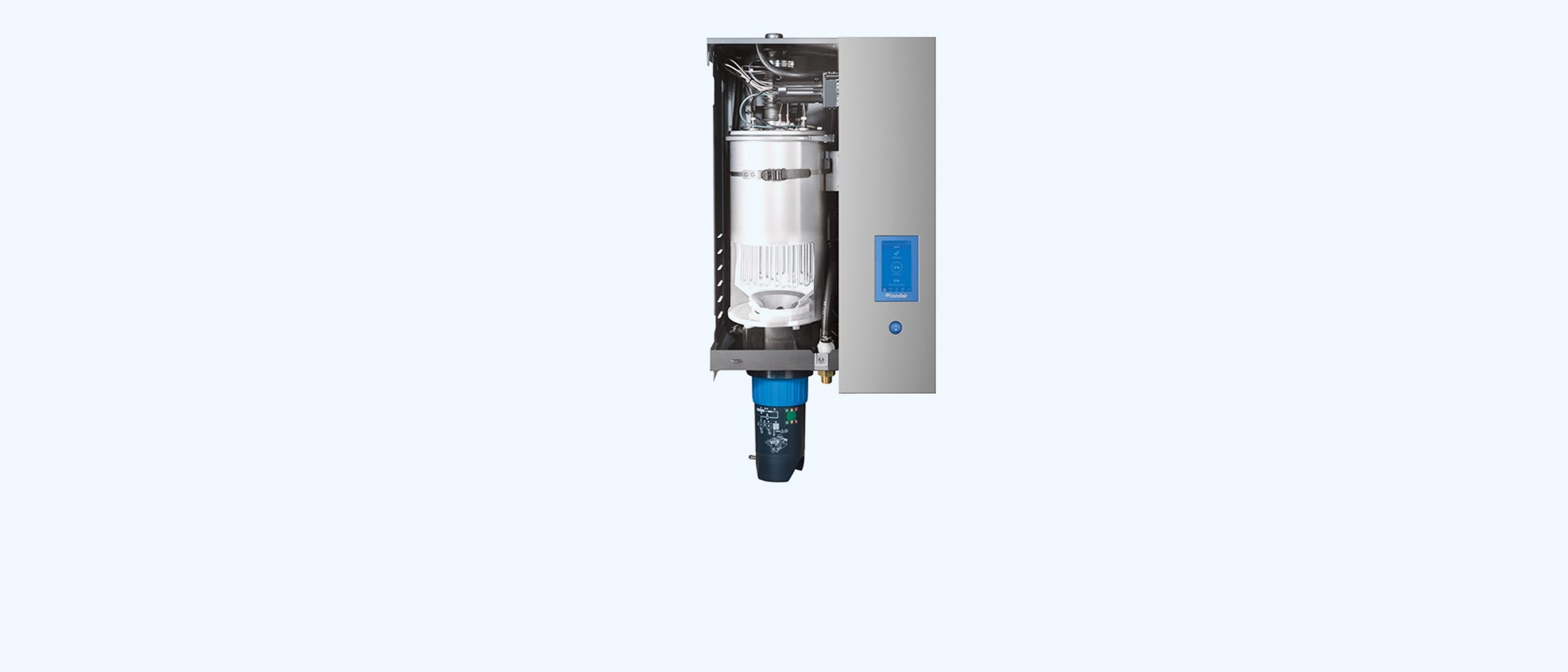

Schematic layout

Professional planning is the basis for functional quality and energy efficiency. We are happy to assist you in the planning phase.

Steam outlet

Steam distribution options with steam hose for in-duct humidification with blower pack for direct room humidification

Steam Cylinder

Corrosion-resistant stainless steel cylinder

Resistive Heater

Condair RS resistive steam humidifiers can operate on mains water, or demineralised water, for close control and reduced servicing.

Schematic layout

Blowdown pump

Limescale collector

The location of the scale collection tank below the unit ensures very easy access. The tank can be removed and emptied easily without the need for opening the unit housing.

Touch Controller

State-of-the-art user interface offers simple control and advanced diagnostic reporting. Current and historic performance data can be called-up in real-time or accessed and analysed remotely via optional IoT (Internet of Things) connectivity.

Downloads

Need a spare part?

Humidity control equipment requires regular maintenance to ensure they operate at their optimal performance. Speak to the team to get a quote on spare/replacement parts.

Find out more

Frequently asked questions

How accurate is humidity control with the Condair RS?

How does the Condair RS manage scale and how easy is maintenance?

The Condair RS features an integrated scale management system. Limescale is automatically separated from the stainless-steel cylinder and collected in an external scale tank, which can be drained at the push of a button. This makes maintenance quick and easy.  In addition, the cold-water pool design prevents blockages in the water inlet and drain by keeping these areas cool.

What control and automation options does the Condair RS offer?

The Condair RS comes with a touchscreen controller for intuitive operation, providing full access to system parameters, service reminders, and automatic safety shutdowns.  It also supports seamless integration with building management systems (BMS) via BACnet (IP and MSTP) and Modbus as standard. A USB port allows trend and fault data logging as well as software updates.

Discover Condair in action

Projects and references

Footwear Design & Development Institute of India (FDDI)

The FDDI, part of the Ministry of Commerce and Industry run by the Indian Government is a prestigious organisation. They play a pivotal role in training the next generation of footwear designers, leather experts, fashion designers and accessories manufacturers. FDDI offer a range of courses across multiple campuses throughout India. FDDI also provides testing, quality control and R&D services to ensure that the India footwear and fashion industry is at the forefront of innovation. With Condair humidification and dehumidification solutions, their facilities maintain the optimal conditions, all-year-round.

Alembic Pharmaceuticals Ltd

Condair RS , for HVAC Condair SETC for FBE

Cipla Ltd, Kurkumbh , Maharashtra

Condair Mk5 , for HVAC

Dr. Reddy's Laboratories Ltd., Hyderabad

Condair RS , for laboratory Fluidized Bed Equipment

Lupin Ltd, Pithampur , M.P.

Condair RS , for HVAC

Lupin Ltd. Research Park, Pune

Condair RS , for HVAC

Sun Pharmaceuticals, Halol, Gujarat

Condair RS for Tray Dryer

Sun Pharmaceuticals Ltd, Dadra Nagar Haveli

Condair RS and Condair SETC humidifcation systems help address any dissolution issues in the coating applications.

Lupin Ltd. Nagpur

Condair RS , for HVAC

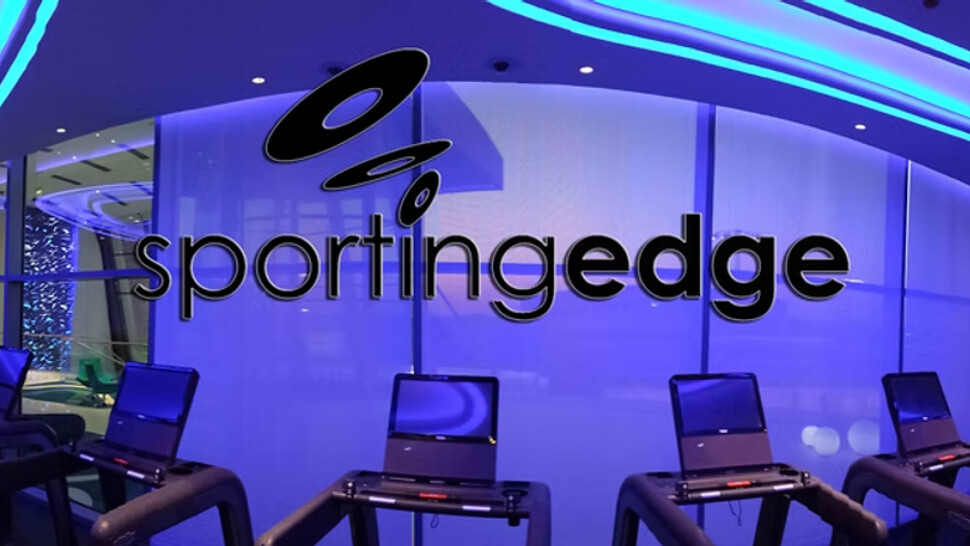

Get a Sporting Edge with Condair

Sporting Edge are a global leader in altitude and environmental facilities, that recreate climates from around the world for sports performance training, research and rehabilitation.
Sporting Edge‚ clients include Premier League football clubs, universities, Olympic associations and even high-end residential homes. Its environmental chambers accurately and consistently create conditions from -30 to +50C, 20 to 95%RH and altitudes up to 9,000m. The company is based in the UK but carries out installations around the world, including Scandinavia, Asia, the Middle East and Africa.

Condair RS steam humidifiers are creating the precise humidity needed in Sporting Edge‚ sophisticated environmental training and research chambers.

Steinway & Sons showroom, UK

Steinway & Sons has been renowned for producing the finest pianos since 1853. The impressive showroom in London Marylebone was recently refurbished. Condair's steam humidifiers are playing a vital role in maintaining the exceptional craftsmanship involved in the production of Steinway's famous pianos.

Harrier Group, UK

Harrier Group, a leading UK digital printing firm, has invested in four Condair RS restive steam humidifiers to maintain the perfect production environment in its newly-designed, high-tech print room.

Henry Moore Foundation, UK

Two Condair RS steam humidifiers have been installed, by Ceilite Air Conditioning, at the prestigious Henry Moore Foundation in Hertfordshire. Henry Moore was a renowned artist, best known for his figure sculptures.

National Army Museum, UK

The National Army Museum is the leading authority on the British Army and its impact on society past and present. Condair has supplied and installed three Condair RS resistive steam humidifiers to maintain the humidity around the exhibits and archives.

Quotes from our customers

Harrier GroupJeremy RawleySafety and Facilities Manager

We already knew Condair, as we have a couple of their units in other print rooms. The quality of their equipment is right up there. Paper is susceptible to changes in environmental conditions so humidity is really important. Their service is second to none as well. We work to tough deadlines and one of the key things for us is that Condair could supply the equipment quickly within the required timescale.

Having a local service engineer on call to maintain them in tip-top condition is important for us too.

Sporting Edge UKDave VincentManaging Director

...we have standardised our humidity control using the Condair RS steam humidifier. It provides us with a dependable, controllable product that will happily work with standard mains water. We also love the self de-scaling feature.

Steinway & Sons, UKCraig TerryManaging Director

Incredibly rare and expensive wood is used in some of our models – but actually any type of wood is susceptible to changes in environmental conditions. Dryness is the enemy of pianos so humidity is really important. We need 40% to 50% humidity all the time to protect the wood, whether they’re in the showroom or the workshop. Condair’s units are ideal for the job.

And because we rely so heavily on the reliability of the humidifiers, we also contracted with Condair to service the humidifiers at regular intervals. Would I recommend Condair? Oh yes, they’ve supplied great service.
